Product introduction:it is a special oil vehicle refitted on the automobile chassis. It is mainly used for oil pipe (rod) paraffin removal, oil well plug removal, pipeline defrosting, pipeline dredging, heavy oil dilution, equipment cleaning and other operations. It can also be used as an active heat source for heating other media, pipelines and equipment cleaning.
Product features:it has the functions of high pressure waxing, heating well flushing and steam wax cleaning. The utility model has the characteristics of stable medium flow, high calorific value, high thermal efficiency, high equipment utilization rate, long service life of vehicle mounted special boiler, simple operation of operating system, safe and reliable ignition, convenient maintenance, etc., and is an ideal equipment for paraffin removal operation in oil field.
Product classification:according to the type of drive, there are three types: mechanical boiler car, hydraulic boiler car and electric boiler car. The power of the mechanical boiler car is provided by the diesel engine of the car platform; the power of the hydraulic boiler car is provided by the hydraulic station; the power of the electric boiler car is provided by the diesel generator set. The control system can provide over temperature alarm protection, over pressure alarm protection and other functions.
Of course, it can also be manufactured into a skid mounted structure to meet the needs of different user groups.

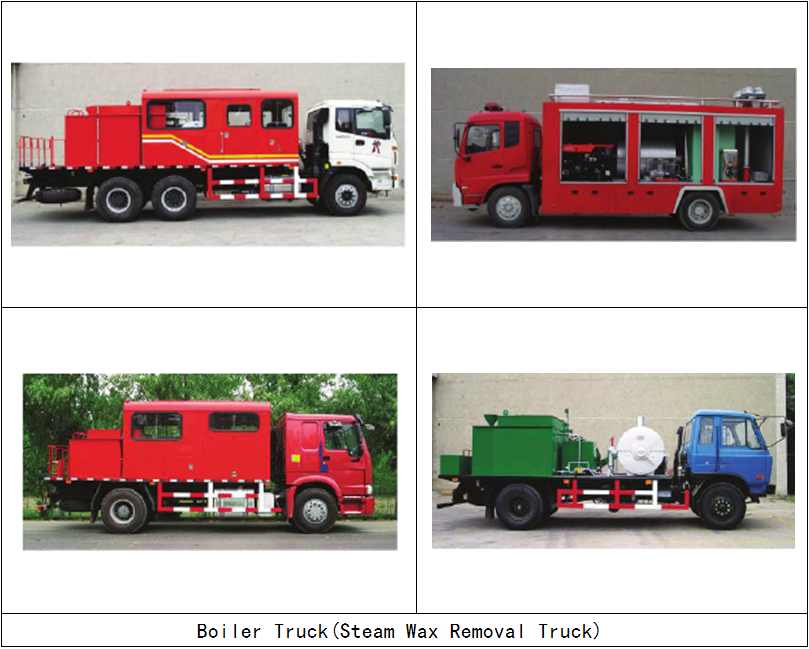

Boiler Truck(Steam Wax Removal Truck) | ||||
Main Technical Parameters | ||||
Name | Unit | Parameter | ||
Max. working pressure | MPa | 6 | 9.8 | |
Max. working displacement | m3/h | 1.26 | 1.8 | |
Max. operating temperature | ℃ | 280 | ||
Max. volume of matching water tank | m3 | 5,7.5 | ||
Max. volume of matching diesel tank | m3 | 0.65，1.0 | ||
Max. thermal power of supporting boiler | kW | 350，700 | ||
Thermal efficiency of on-board special boiler | / | ≥90% | ||
Fuel type of on-board special boiler | / | Diesel oil,Natural gas | ||
Working medium | / | Clean water，Crude oil | ||
Working voltage of special boiler | / | 24VDC | 380VAC | |
Power supply form | / | Chassis battery | Diesel generator set | |
