LGC5250TXL20 Well Cleaning and Wax Removal Vehicle News

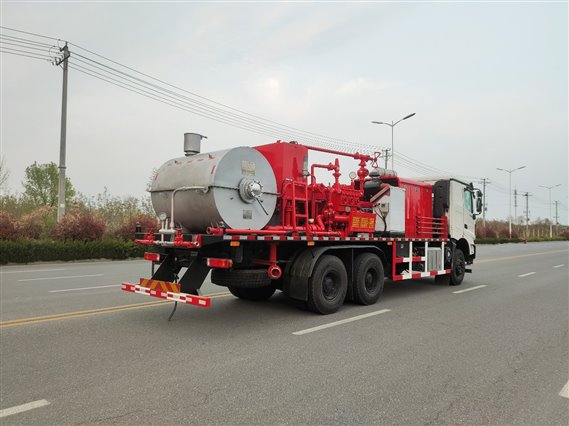

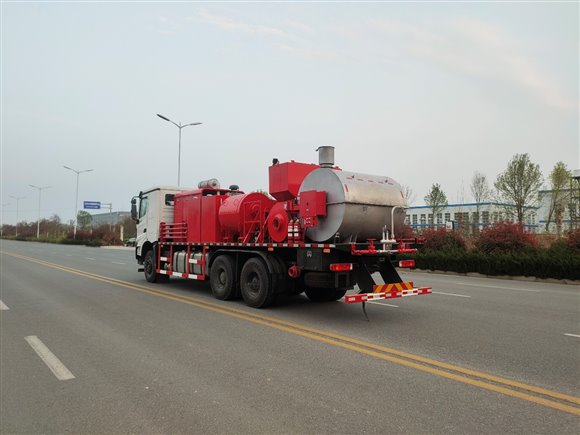

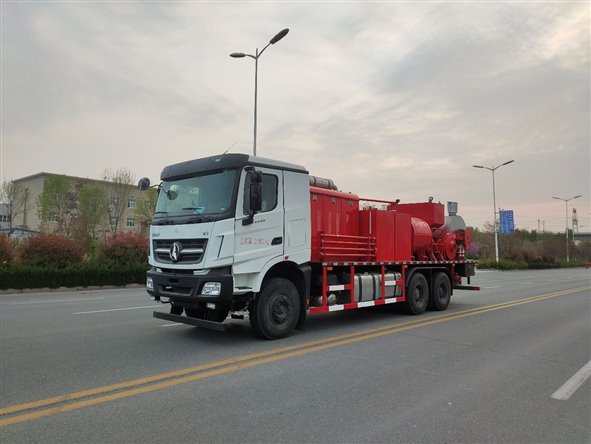

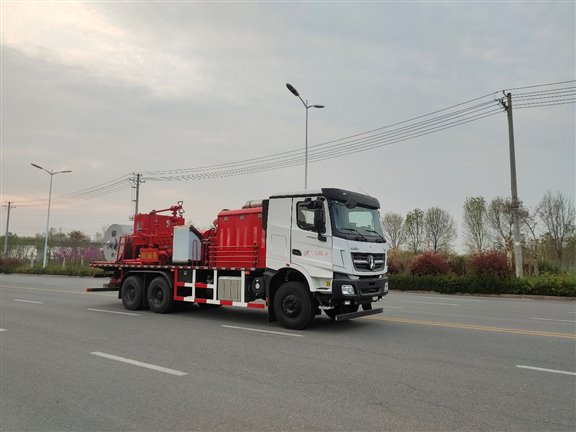

  LGC5250TXL20 Well Cleaning and Wax Removal Vehicle

  On April 12, 2024, the LGC5250TXL20 well cleaning and wax removal vehicle produced by the company entered load debugging and was delivered to a customer in Hebei on April 18, 2024.

  The car is mainly composed of a car chassis, diesel engine, mechanical gearbox, three- cylinder plunger pump, burner, on-board special boiler, high-pressure pipeline, low-pressure pipeline, fuel system, hydraulic system, and electronic control system.

  This vehicle is mainly used for normal hot washing and unblocking of production oil wells; High pressure well flushing and pressure testing; Collaborate with well repair operations to remove wax from pipes and rods. It can also be widely used for heating other media, dredging and thawing ground pipelines, cleaning equipment and other construction operations.

  Main equipment configuration:

  1、Beiben ND1250BD6J7Z01 chassis, V3 platform cab, 6 × 4 drive, National VI emission standard.

  2、Weichai 530HP diesel engine.

  3、Fast 12JSD240T gearbox.

  4、3PC-350 Three cylinder Plunger Pump

  5、24VDC fully automatic control two-stage fire type burner.

  6、1000KW vehicle mounted special boiler.

  7、Cold washing pressure of 70MPa, cold washing flow rate of 70m3/h; Hot washing pressure of 20MPa, hot washing temperature of 200 ℃; The wax removal pressure is 6MPa, and the wax removal temperature is 150 ℃.

  8、The digital display meter displays the electronic control system, with centralized control and real-time monitoring of the pressure, temperature, and flow rate (instantaneous flow rate and cumulative flow rate) of the equipment. It has a function of over temperature and over pressure alarm protection.
